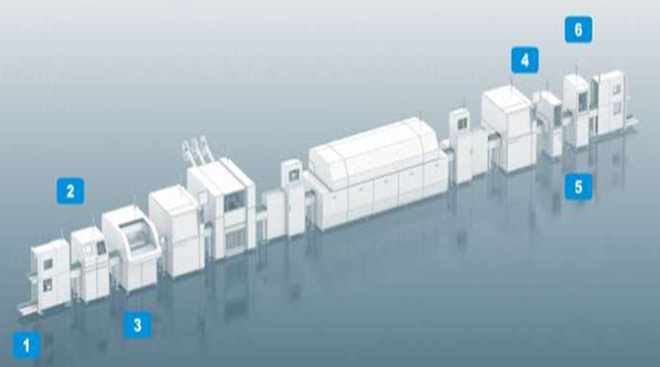

A reference material to illustrate a typical SMT line flow like this: PCB loader ->Label placing ->Screen printing->Pick and Place ->IR reflow->Odd parts placing & soldering->Under-fill & Coating->ICT->Panel programming->De-paneling-> Manipulator->PCBA testing->Un-loader……

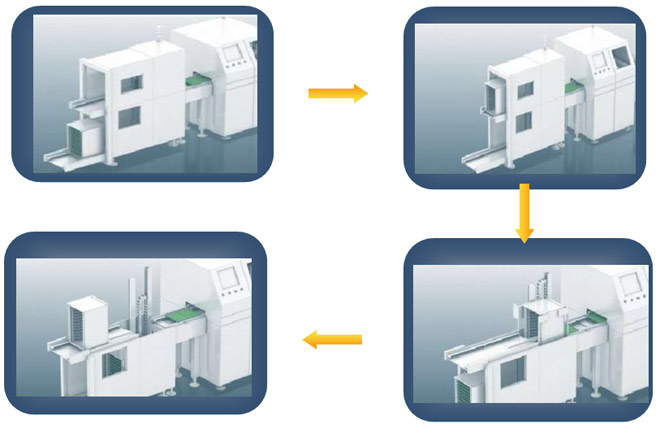

PCB loader/un-loader

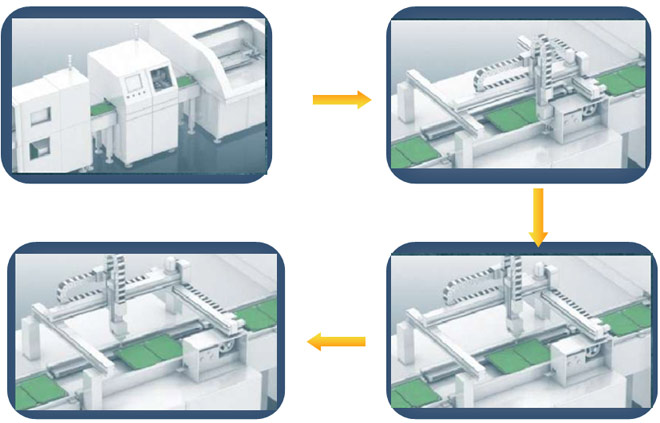

Under-filling / Coating / Dispensing

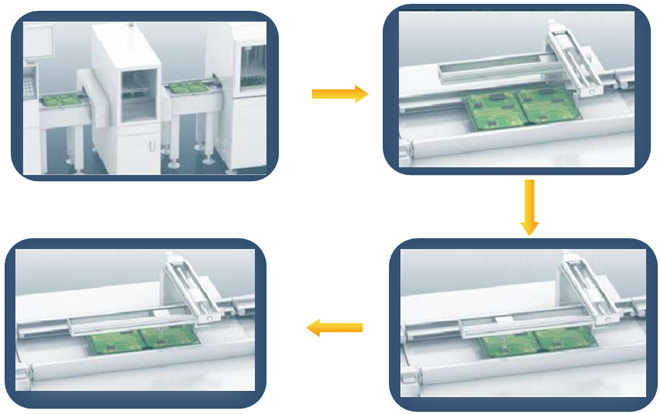

Place label

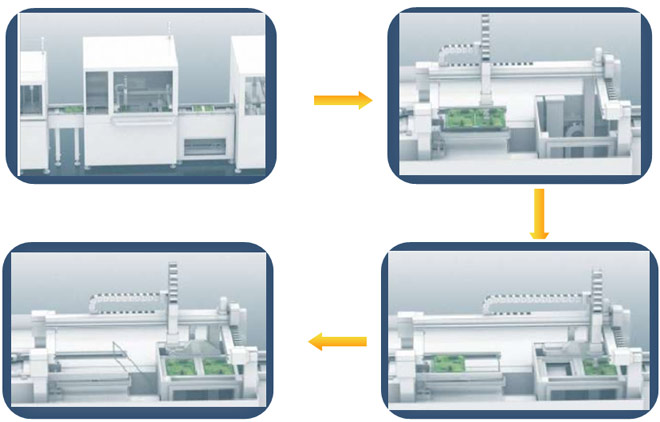

ICT

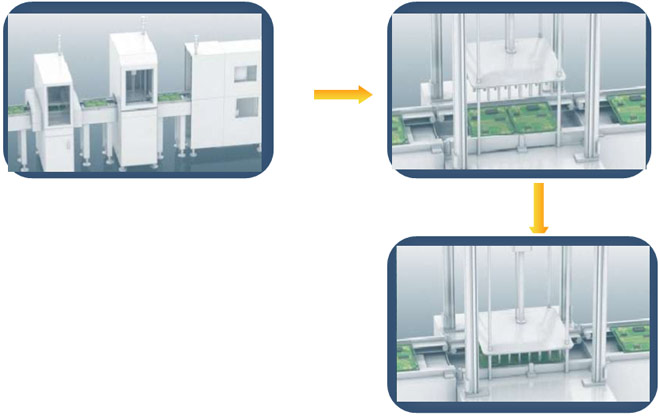

De-paneling

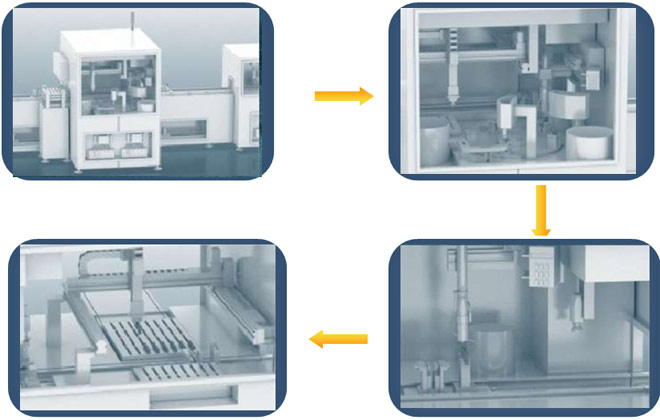

Manipulator

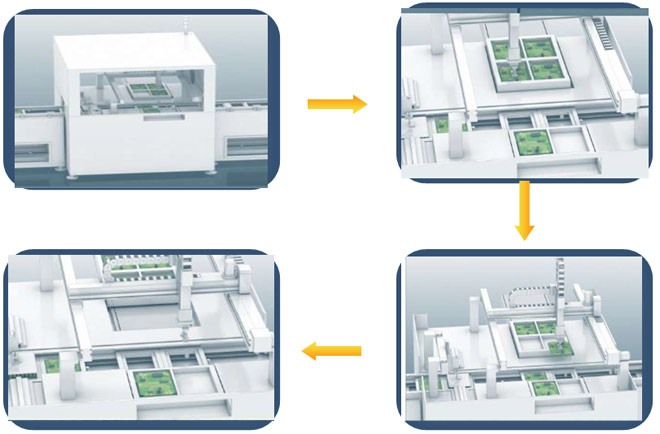

Final assembly
