Product |

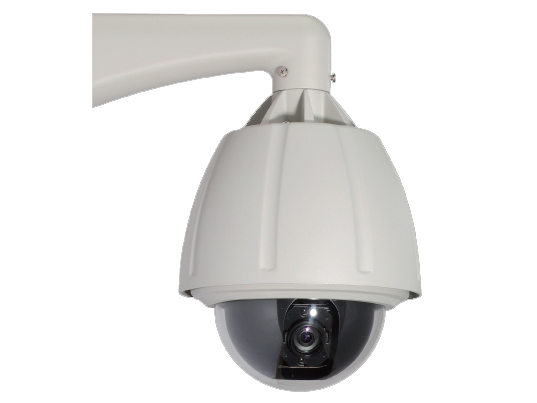

C Series High-speed IP Dome |
|
Model |
SIN-470 |
|
Feature |
D1 Resolution Image, Remote/ Local Monitoring and Recording,Snapshot, OSD, Multi-recording method, Optimal Audio/ Video synchronization.View by IE (5 person meanwhile) |
|
Software Management |
64 pictures of client software. Search and distribute IP address |
|
Security |
3 Levels: administrator, user and guest. |
|
Alarm/ Recording |
Motion detection, Alarm input, Output.Schedule and Manual Recording |
|
Pan/Tilt Control |
RS485 |
|
Browser |
Windows2000/XP Version |
|
DirectX8.0 above |
|
Hardware |
CPU |
32Bit RSIC Embedded Processor |
|
OS |
Embedded Linux system |
|
Network |
Protocol |
TCP/IP, HTTP, ARP, RARP, TCP, ICMP, DHCP |
|
PPPOE, DDNS |
|
Interface |
RJ45 10/100M |
|
Video |
Compression |
MPEG-4 |
|
Frame Rate |
10-30fps (D1) |
|
Resolution |
D1: 720×576 CIF: 320×288 FIELD: 720×288
QCIF: 192×144 |
|
Input |
1Ch |
|
Output |
1Ch |
|
Audio |
Compression |
ADPCM |
|
Input |
Built-in MIC |
|
Camer ( FCB-EX45CP) |
Lens |
Optical 18×, f=4.1～73.8mm ( f1.4～F2.4), Digital 12× |
|
S/N Ratio |
>48db (AGC OFF) |
|
View Angle |
48°( wide )～2.8°( tele ) |
|
White Balance |
Auto |
|
BLC |
Auto |
|
Operate Temperature |
In door:(0℃--40℃): out door (-20℃--+60℃) |
|
Speed |
0．5°-280°（High/Middle/Lowoptional） |
|
Horizontal rotation range |
Continuous360° |
|
Automatic cruise |
preset 128 |
|
Automatic Overturn |
vertical 0°-90° |
|
Power |
DC12V 2A |
