> CCTV Products > A Series Waterproof IR IP Camera
|
|
|
 |
|
Product |

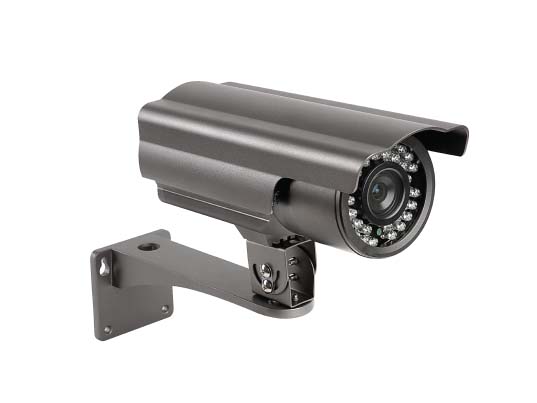

A Series Waterproof IR IP Camera |
|
Model |
SIN-510 |
|
Feature |
D1 Resolution Image, Remote/ Local Monitoring and Recording,Snapshot, OSD, Multi-recording method, Optimal Audio/ Video synchronization.
View by IE (5 person meanwhile) |
|
Software Management |
64 pictures of client software. Search and distribute IP address |
|
Security |
3 Levels: administrator, user and guest. |
|
Alarm/ Recording |
Motion detection, Alarm input, Output.Schedule and Manual Recording |
|
Pan/Tilt Control |
RS485 |
|
Browser |
Windows2000/XP Version |
|
DirectX8.0 above |
|
Hardware |
CPU |
32Bit RSIC Embedded Processor |
|
OS |
Embedded Linux system |
|
Flash Memory |
16M |
|
Network |
Protocol |
TCP/IP, HTTP, ARP, RARP, TCP, ICMP, DHCP |
|
PPPOE, DDNS |
|
Interface |
RJ45 10/100M |
|
Video |
Compression |
MPEG-4 |
|
Frame Rate |
10-30fps (D1) |
|
Resolution |
D1: 720×576 CIF: 320×288 FIELD: 720×288
QCIF: 192×144 |
|
Input |
1Ch |
|
Output |
1Ch |
|
Audio |
Compression |
ADPCM |
|
Input |
Built-in MIC |
|
CCD |
Image Sensor |
1/3 SONY, 420 TVL (SHARP, 480TVL Optional) |
|
S/N Ratio |
>48db (AGC OFF) |
|
Lens Interface |
CS/C |
|
White Balance |
Auto |
|
BLC |
Auto |
|
IR LED Distance |
36pcs of LED/30M |
|
Lens |
8MM Fixed Lens |
|
Operate Temperature |
-10℃~+50℃ |
|
storage temperation |
-20℃~+60℃ |
|
Power |
DC12V 1A | |
