Specifications: |
|
|
|
|
|
~Solution: Mstar6M182VG |
|
|
|
~Panel: CMO/BOE |
|
|
|
|
~Display resolution: 12800 (H) x 1024 (V) pixels |
|
|
~Brightness: 300 cd / ㎡ |
|
|
|
~Contrast ratio: 1000:1 |
|
|
|
|
~Pixel pitch: 0.2835 (H) x 0.2835 (V) |
|
|
|
~Grey scale: 256 (R/G/B each 8-bit) |
|
|
|
~Display Format: SDTV |
|
|
|
Video Input and output : |
|
|
|
AV IN *1/AV OUT |
|
|
|
|
|
Coaxial |
|
|
|
|
|
VGA |
|
|
|
|
|
PC AUDIO IN |
|
|
|
|
|
YPbPr |
|
|
|
|
|
HDMI |
|
|
|
|
|
EARPHONE |
|
|
|
|
|
USB*1(READ MP3 AND MP4) |
|
|
|
Basic Functions: |
|
|
|
|

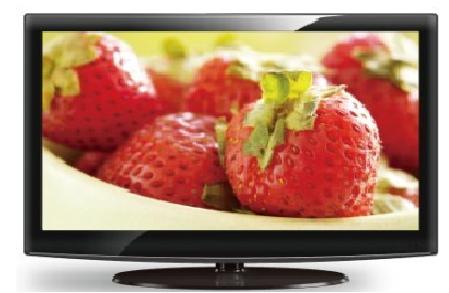

~19" Diagonal screen size |
|
|
|
|
~ CMO/BOE colour active matrix TFT LCD panel |
|
|
~Built-in digital 2-D comb filter, Sleep timer function |
|
|
~High resolution, hight contrast, Anti-static, low reflection |
|
|
~Viewing angle: 160 degrees (H); 160 degrees (V) |
|
|
~Response time: 8 ms |
|
|
|
|
~Display colours: 16.7 miilion true colour (8-bit) |
|
|
~Picture control, adjustable colour temperature |
|
|
~Aspect ratio: 16:10 PS |
|
|
|
|
~Support PAL / NTSC (3.58 / 4.43 MHz)/Secam TV colour system |
|
~TV signal system: I / DK / BG, M/N,L/L' |
|
|
|
~Multi-language OSD display |
|
|
|
|
~Programmable memory: 200 channels |
|
|
|
~Power output: 2 x 3 Watts stereo sound |
|
|
|
~Backlight life: 50,000 hours |
|
|
|
|
~Power consumption: 40 W (working); < 3 W (standby) |
|
|
~Full function IR remote control (uses 2 x AAA battery) |
|
|
~Wall mount (Optional) |
|
|
|
|
~Power supply: AC 90 - 240V ; 50 / 60Hz DC12V-4A |
|
|
~Accessories: AC Adaptor, Power Cable，Remote handset |
|
|
|
~support Nicam and BTSC Audio (Option) |
|
|
|
~Support CC/V-chip(NTSC System) and Teletext(PAL/Secam System) |
|
|
|
|
|
|
(Optional) |
|
|
|
|
|
|
|
|
|
