Technical Specification of Outdoor SMD 3 in 1 LED Display
|
No |
Item |
Parameter |
|
1 |
Pitch (mm) |
16 |
|
2 |
LED Standard |
SMD5050 |
|
3 |
LED Arrangement |
1R1G1B |
|
4 |
Brightness (cd/m^2) |
≥6000 |
|
5 |
Density (Real) (dots/m^2) |
3906 |
|
6 |
Density (Virtual) (dots/m^2) |
--- |
|
7 |
Module Size (mm) |
(L)=256; (H)=128; |
|
8 |
Module Resolution (dots) |
16*8 |
|
9 |
Cabinet Size (mm) |
(L)=1024 ; (H)=768 ; (W)=150 |
|
10 |
Resolution/Cabinet |
64*48 |
|
11 |
Cabinet Material |
Iron Cabinet |
|
12 |
Waterproof Material |
Silicone |
|
13 |
Waterproof Size |
Display Size |
|
14 |
Angle-Level (angle) |
120 (Right/Left) |
|
15 |
Angle-Vertical (angle) |
120 (Up/Down) |
|
16 |
Best-Vision-Distance (m) |
5-130 |
|
17 |
Gray Grade (Rank) |
≥16384 |
|
18 |
Display Color (Color) |
Full Color (16.7m) |
|
19 |
Display Mold |
Virtual Image Control |
|
20 |
Drive Mode |
Static, Constant Current Driver |
|
21 |
Control Mode |
Synchrony Transfer |
|
22 |
In-Interface |
RS422 |
|
23 |
Connecting Series |
VGA |
|
24 |
Cabinet Weight (kg/pc) |
55 |
|
25 |
Max Power Consumption (KW/m^2) |
1000 |
|
26 |
Avg Power Consumption (KW/m^2) |
500 |
|
27 |
Life Time (hr) |
100000 |
|
28 |
Voltage (V) |
AC: 220 /380 ±10 %, 50 Hz |
|
29 |
Control Distance (m) |
< 100 |

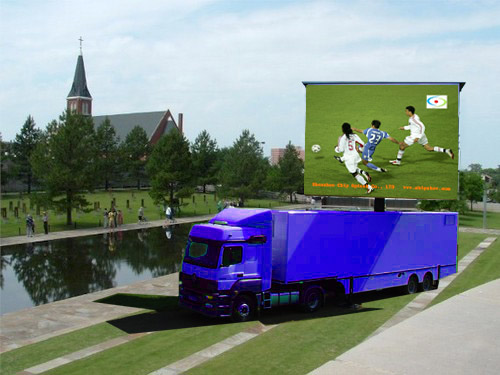

A breakthrough technology is for SMD 3 in 1 Outdoor LED display., which with the speciality of waterproof, high brightness, wide view angles and superb uniformity at very short viewing distance, brightness and flexible can be adjusted automatically or manually, it is the best solution to display video in outdoor or indoor environment
