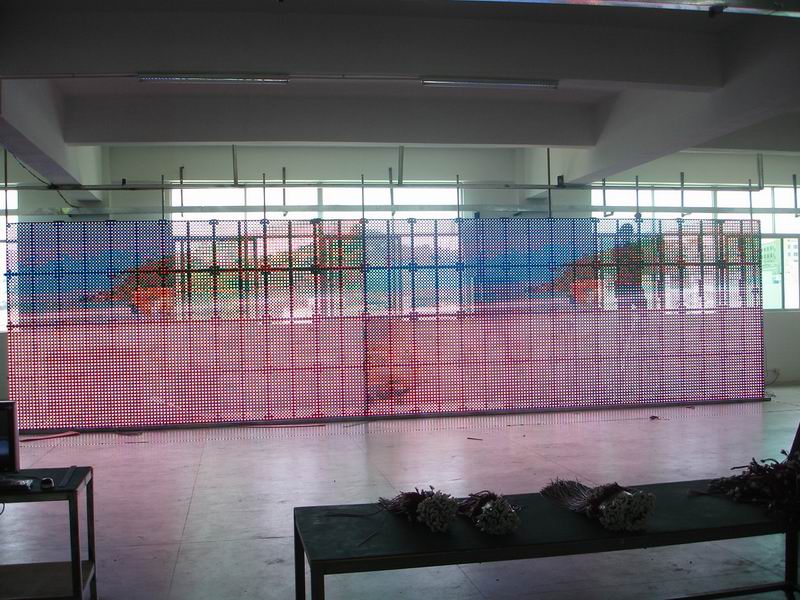

Technical Specification of Indoor Curtain LED Display
No |
Item |
Parameter |
1 |
Pitch (mm) |
40 |
2 |
LED Standard |
5 Oval Lamp |
3 |
LED Arrangement |
2R1G1B |
4 |
Brightness (cd/m^2) |
≥1000 |
5 |
Density (Real) (dots/m^2) |
625 |
6 |
Density (Virtual) (dots/m^2) |
— |
7 |
Module Size (mm) |
(L)=320 ; (H)=320 ; |
8 |
Module Resolution (dots) |
8*8 |
9 |
Cabinet Size (mm) |
(L)=960 ; (H)=960 ; (W)=80 |
10 |
Resolution/Cabinet |
24*24 |
11 |
Cabinet Material |
Iron Cabinet |
12 |
Waterproof Material |
Silicone |
13 |
Waterproof Size |
Display Size |
14 |
Angle-Level (angle) |
110 (Right/Left) |
15 |
Angle-Vertical (angle) |
40 (Up/Down) |
16 |
Best-Vision-Distance (m) |
16-130 |
17 |
Gray Grade (Rank) |
≥4096 |
18 |
Display Color (Color) |
Full Color (16.7m) |
19 |
Display Mold |
Virtual Image Control |
20 |
Drive Mode |
Static, Constant Current Driver |
21 |
Control Mode |
Synchrony Transfer |
22 |
In-Interface |
RS422 |
23 |
Connecting Series |
VGA |
24 |
Cabinet Weight (kg/pc) |
20 |
25 |
Max Power Consumption (KW/m^2) |
750 |
26 |
Avg Power Consumption (KW/m^2) |
350 |
27 |
Life Time (hr) |
100000 |
28 |
Voltage (V) |
AC: 220 /380 ±10 %, 50 Hz |
29 |
Control Distance (m) |
< 100 | |
|
|
|
