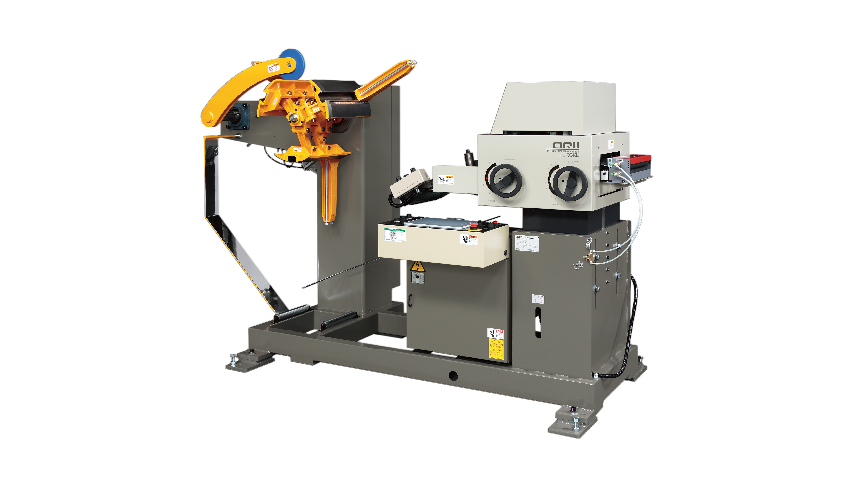

The KL model has been launched to set the new standard for feeding technology, inheriting high cost performance from the best-selling model KR.

Features

New Standard Technology
The KR has an established reputation as the industry standard of feeding technology. The KL has been developed by further refining its functions in detail to realize advanced performance, which may be justly called the standard of next-generation straightener feeders.

In Pursuit of Downsizing
Orii design technology places high priority on the availability of working space. This policy is certainly reflected in the development of the KL system which has an overall length of 2690. This space-saving design is unrivaled by any other models in the same class of feeders.

Amenity Design for Greater Ease of Operation
The operator’s panel is designed to minimize the possibilities of operation mistakes. The entire press stamping work can be arranged easily, giving consideration to job flows. Other features include easy operation, maintenance and excellent workability.

Large Straightening Roll Adjustment
The KL system has been designed with a large straightening adjustment wheel. This allows easy control for the operator.

Specifications

Model		LCC03KL
Stock Width	（mm）	50～300
Stock Thickness	（mm）	0.3～3.2
MAX.Coil Mass	（kg）	1500
MAX.Coil O.D.	（mm）	1,200
Coil I.D.	（mm）	508
Feed Length	（mm）	※ ～300
MAX.Line Speed	（m/min）	12
Work Roll Number	―	upper３/lower２
Main Motor	（kw）	AC1.2
Mandrel Expansion	―	by Manual
Reel Motor	（kw）	0.4
Power	（V）	200/220
Operating Air	（Mpa）	0.49

※In case Feeding Length exceeding Specification, MASTER CONTROL Function (Option） must be provided.
